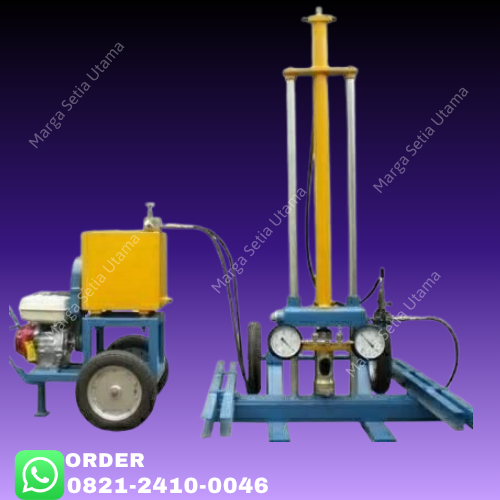

Sondir Hydraulic 5 Ton RS-210A Dutch Cone Penetrometer 50 kN

Deskripsi

SONDIR HYDRAULIC 5 TON RS-210A

Sondir Hydraulic 5 Ton RS-210A merupakan Dutch Cone Penetrometer (CPT) berkapasitas 50 kN (5 Ton) untuk mengukur cone resistance dan friction resistance pada lapisan tanah. Cocok digunakan untuk investigasi geoteknik, pondasi, jalan, jembatan, dan konstruksi.

Spesifikasi

✔ Kapasitas : 50 kN (5 Ton)
✔ Tipe : Dutch Cone Penetrometer Hydraulic (500-S)
✔ Sistem hidrolik double action.
✔ Engine pump berbahan bakar bensin.

Kelengkapan

✔ Hydraulic Driving Appliance, kapasitas 50 kN.
✔ Engine Pump / Gasoline Engine Hydraulic Double Action.
✔ Sounding Rod Ø36 mm × 1 m.
✔ Plunger Round Bar Ø15 mm × 1 m.
✔ Push & Pull Adaptor.
✔ Spiral Anchor panjang 1,5 m.
✔ Handle T-Piece.
✔ Mantel Cone, hardened tip.
✔ Friction Cone dengan friction jacket.
✔ Fasten Press Beam Channel.
✔ Wrench Set: Pipe Wrench (2), Adjustable Wrench (1), Spanner Wrench (1), Allen Key (1), Screw Driver (1), Oil Can (1), Steel Brush (1), Piston Wrench (1), Seal Tape (2), Oil Seal (2), Carrying Box.
✔ Manometer 100 kg/cm².
✔ Manometer 500 kg/cm².

Keunggulan

✔ Kapasitas 50 kN (5 Ton).
✔ Mengukur tahanan konus dan hambatan gesek tanah secara akurat.
✔ Sistem hidrolik kuat dan mudah dioperasikan.
✔ Ideal untuk pengujian CPT/sondir di lapangan.
